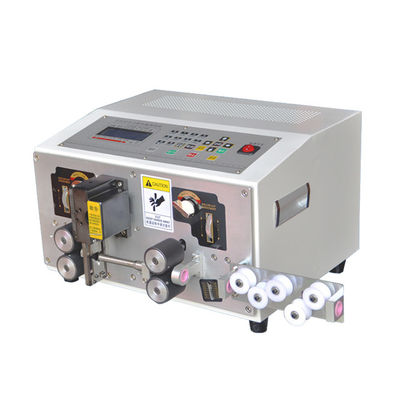

Fully Automatic Wire Cutting, Stripping & Bending Machine

Ulasan pelanggan
Setelah dibuat, mesin Elite Automation selalu dapat diandalkan;

—— Lina SUN

Saya tidak ragu membeli dan menggunakan mesin Elite untuk bisnis saya;

—— Faye CHEN

Kami telah bekerja dengan Elite selama bertahun-tahun, dan keterampilan mereka terus membuat kami terkesan.

—— Frank XIONG

I 'm Online Chat Now

Fully Automatic Wire Cutting, Stripping & Bending Machine

Fully Automatic Wire Cutting, Stripping & Bending Machine
Fully Automatic Wire Cutting, Stripping & Bending Machine
Fully Automatic Wire Cutting, Stripping & Bending Machine Fully Automatic Wire Cutting, Stripping & Bending Machine

Gambar besar :  Fully Automatic Wire Cutting, Stripping & Bending Machine

Detail produk:
Tempat asal: Cina
Nama merek: ELITE
Nomor model: JR-002
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 3 buah
Harga: Contact Our Sales
Kemasan rincian: Kasus Kayu
Waktu pengiriman: 2 minggu
Syarat-syarat pembayaran: T / T
Menyediakan kemampuan: 50 pcs / hari

Fully Automatic Wire Cutting, Stripping & Bending Machine

Deskripsi
Model: JR-002 fitur: Pemotongan kawat pengupasan dan pembengkokan
Penampang konduktor: 2-25mm2 Panjang pengupasan: 0,1-100mm
Memotong panjang: 1-100,000mm Memotong toleransi: ± (0,001xL) mm

Fully Automatic Wire Cutting, Stripping & Bending Machine



This wire bending machine is able to cut, strip and bend wires and cables up to 25mm2. It can strip both ends of the wire, and bend the wire into your requested angle.

This is a high performance wire cutting stripping and bending machine for processing a wide range of wires and cables;

Applicable wire sizes: 2-25mm2

It can not only strip both ends of the wire, but also bend the wire into your requested angle;

The straightforward display provides information in the selected language about the current processing status, very visualized;

The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;

Affordable price and perfect working performance.



Model JR-002
Features Wire cutting stripping and bending
Conductor cross-section 2-25mm2
Stripping length 0.1-100mm
Cutting length 1-100,000mm
Cutting tolerances ± (0.001xL)mm
Bending length Can be set
Bend shape/angle U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90°
Production rate L=100mm, 2,000-3,000pcs/h
Power supply 110/220VAC, 50/60Hz
Power 600W
Conduit diameter Generally ⌀ 10mm, can be customized according to wire size
Display screen Chinese/English touch screen
Weight 88KG
Dimensions 95x88x82cm




































Fully Automatic Wire Cutting, Stripping & Bending Machine 0
